Description

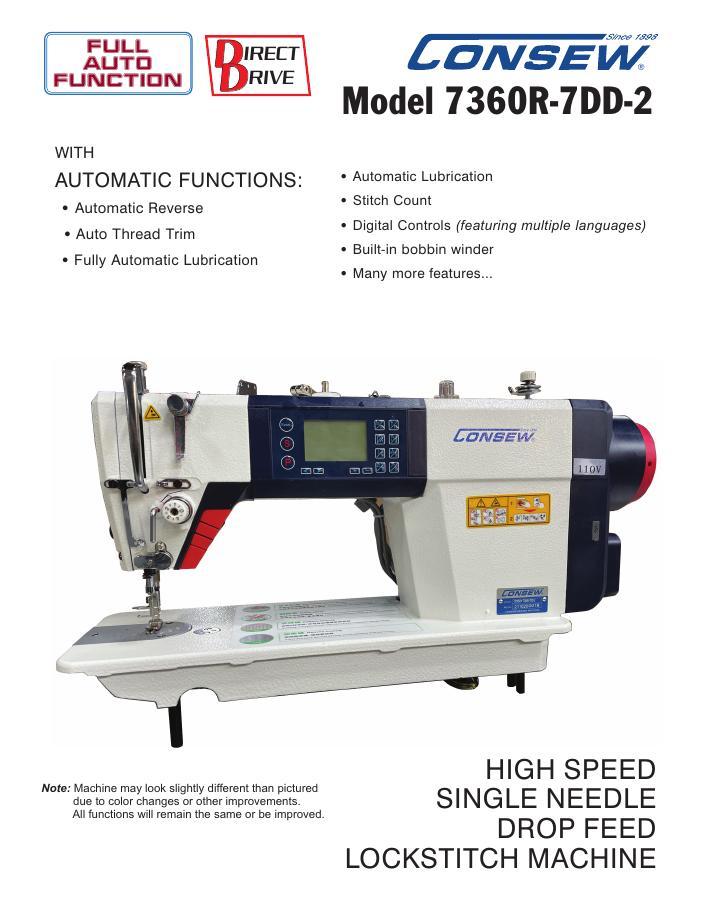

Consew 7360R-7DD-2 Fully Automatic Auto Trimming High Speed Single Needle Drop Feed Lockstitch Industrial Sewing Machine Comes With Table and Legs

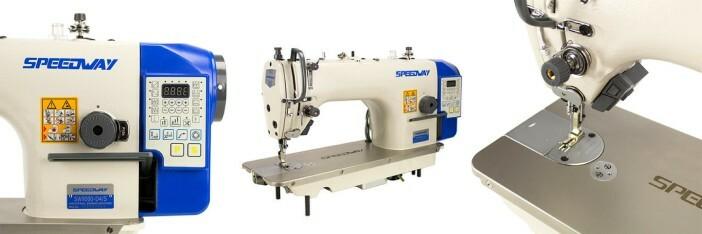

Speedway version also available, Speedway model SW9000-D4/S with a Stainless Steel bed:
The 7360R-7DD-2 is the next generation after the 7360R-7DD-1. High Speed (*5000 spm,) Single Needle, Drop Feed, Lockstitch Machine
With: Automatic Reverse (backtacking), Auto-lubrication, Rotary Hook, Needle Positioning, Under Bed Thread Trimmer, Electric Thread Clamp (holds thread qfter thread trim), Electric Foot Lift, Stitch Counter, Built-in Bobbin Winder, Built-in, Direct Drive 3/4hp 550 Watt Motor (Availablle in 110v or 220v)
Also available: 7360RH-7DD Heavy duty version. (*4000 spm, 5 spi, DBX5 needle)

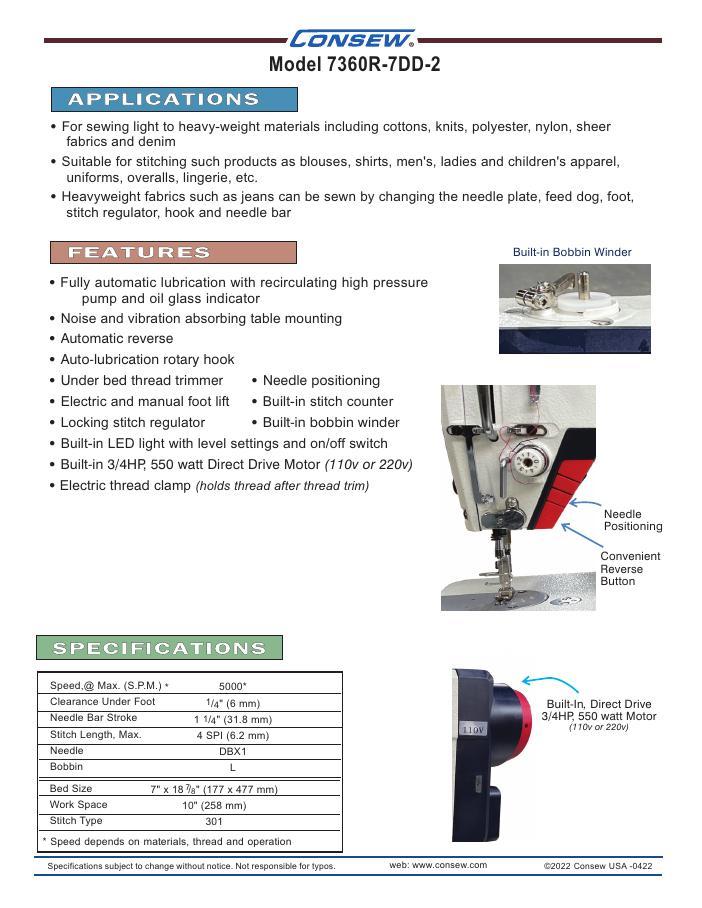

MACHINE APPLICATIONS:
- For sewing light to heavy-weight materials including cottons, knits, polyester, nylon, sheer fabrics and denim
- Suitable for stitching such products as blouses, shirts, men's, ladies and children's apparel, uniforms, overalls, lingerie, etc.
- Heavyweight fabrics such as jeans can be sewn by changing the needle plate, feed dog, foot, stitch regulator, hook and needle bar
MACHINE FEATURES:
- Fully automatic lubrication with recirculating high pressure pump and oil glass indicator
- Noise and vibration absorbing table mounting
- Automatic reverse
- Auto-lubrication rotary hook
- Under bed thread trimmer
- Needle positioning
- Electric and manual foot lift
- Built-in stitch counter
- Locking stitch regulator
- Built-in bobbin winder
- Built-in LED light with level settings and on/off switch
- Built-in 3/4HP, 550 watt Direct Drive Motor (110v or 220v)
- Electric thread clamp (holds thread after thread trim)
- Note: Machine may look slightly different than pictured due to color changes or other improvements. All functions will remain the same or be improved.
MACHINE SPECIFICATIONS:
- Number of Needles: 1 (Single)
- Feeding Mechanism: Drop Feed
- Workspace: Standard Workspace
- Standard or Full Function: Standard Functions
- Speed, Max (S.P.M.): 5000
- Motor Type: Direct Drive
- Clearance Under Presser Foot: 1/4" (6mm) , 1/4" (6mm)
- Stitch Length: 4 s.p.i. (6.2mm)
- Work Space: 10" (258mm)
- Needle: DBX1 (#9~#18)
- Bed Size: 7" x 18 7/8" (177mm x 477mm)
- Stitch Type: 301 , 301
- Needle Bar Stroke: 1 1/4" (31.8mm) , 1 1/4" (31.8mm)
THE ADVANTAGES OF A DIRECT DRIVE MOTOR:
- Silent and use up to 90% less power than clutch motors
- 1/3 lighter than clutch motors
- With a flick of the switch you can reverse motor rotation
- No parts to wear out or adjust
- Lightweight, precise, and reliable
Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.
