Description

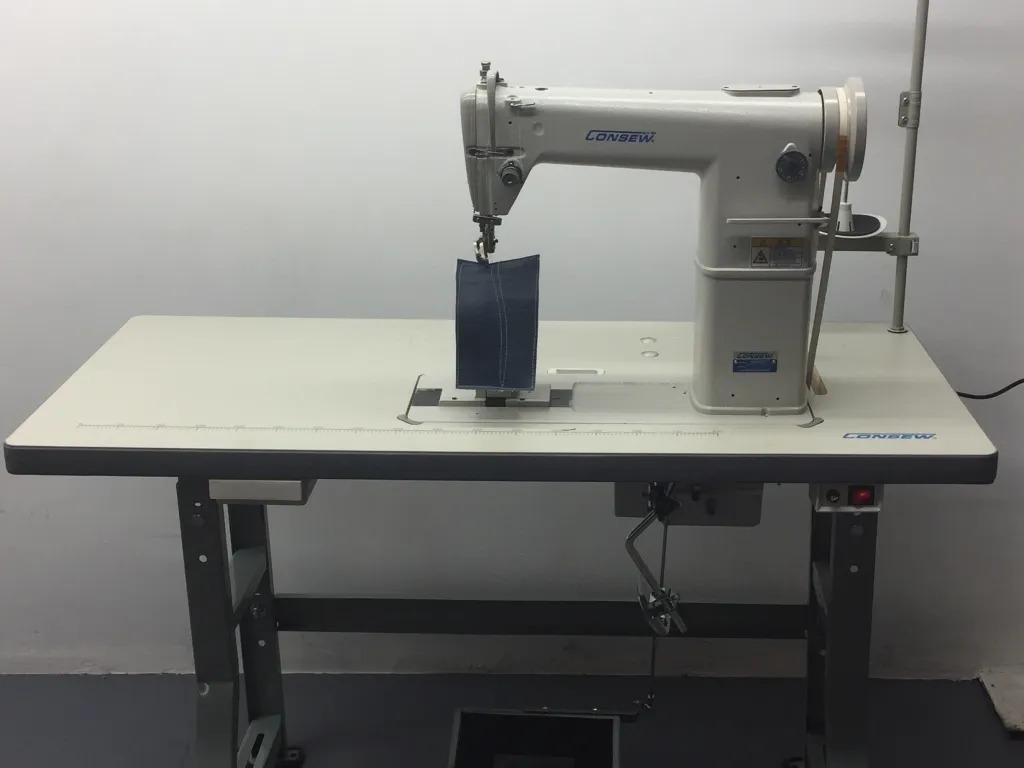

Consew 228R-11-1 High Speed, Post Bed, 1 Needle, Drop Feed Lockstitch Industrial Sewing Machine With Table, Legs, and Servo Motor
Vertical Axis Hook, Roller Presser Feet, Reverse Feed
MACHINE APPLICATIONS:
- For sewing light and medium weight fabric, leather, vinyl, canvas and various laminated and coated materials
- Designed for stitching articles such as raincoats, underwear, corsets, brassieres and similar products
- Suitable for vamping, space stitching and tipping on shoes
MACHINE FEATURES:
- Vertical axis hook
- Drop feed
- Roller presser foot allows for turning of sharp corners and tight curves
- Single needle
- Stitches per minute - 3000*
- Reverse feed
MACHINE SPECIFICATIONS:
- Number of Needles: 1 (Single)
- Feeding Mechanism: Drop Feed
- Workspace: Standard Workspace
- Standard or Full Function: Standard Functions
- Lubrication: Manual
- Speed, Max (S.P.M.): 3000
- Clearance Under Presser Foot: 15/64" (6mm)
- Stitch Length: 5 s.p.i. (5mm)
- Needle: DP-F22/134S
- Bobbin: Pre-Wound G
- Stitch Type: 301
- Needle Bar Stroke: 1 1/4" (32mm)
- Hook: 12032
- Post Height: 7" (178mm)
- Work Surface: 1 7/8" x 2" (48mm x 75mm)
WHAT COMES WITH THE COMPLETE UNIT SHIPMENT?
- Machine Head factory-sealed box
- Stand/Legs
- Servo-Motor
- Table Top (MADE IN USA)
- Instruction Manual, Parts Book, and Documentation
ORDER SPECIAL PARTS:
DOWNLOADS
- 228R-11 Parts Book
- 228R-11 Instruction Manual

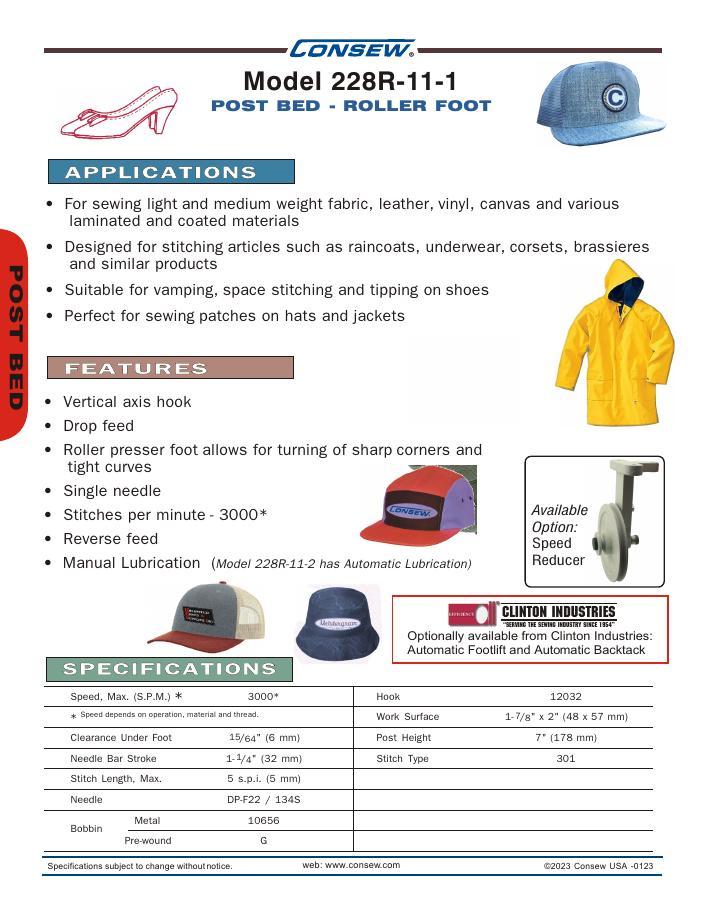

- 228R-11-2 Spec Sheet (PDF)
- 228R-11-1 Demo VIDEO link
- 228/357 Instr & Parts Manual 2021
THE ADVANTAGES OF A SERVO MOTOR:
- Silent and use up to 90% less power than clutch motors
- 1/3 lighter than clutch motors
- With a flick of the switch you can reverse motor rotation
- No parts to wear out or adjust
- Lightweight, precise, and reliable
Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.
